Note: Battery types 301 and 386 are equivalent to SR43.
How to replace Garmin Vivofit 4 batteries: step by step
- Remove the device from the band.

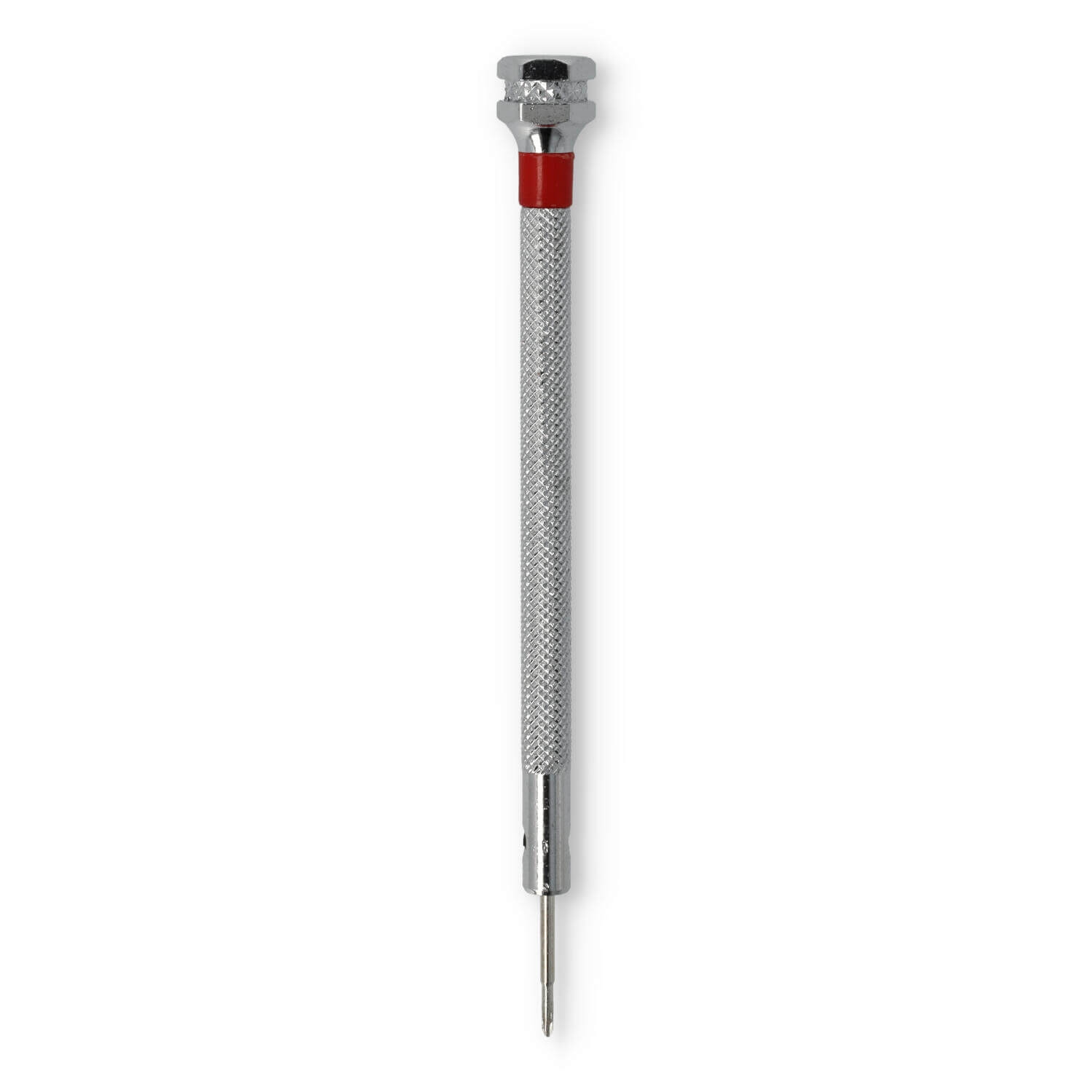

- Use a small Phillips screwdriver to unscrew the four screws on the front.
- Remove the front panel and the old batteries.
- Insert the new batteries with the negative side facing inward, towards the front cover.
- Check that the gasket is undamaged and correctly placed in the back of the housing.
- Ensure the gasket tabs align properly with the notches in the battery holder. Incorrect placement may damage the seal.
- Reattach the cover and tighten the four screws evenly and securely.
- Place the device back into the band and pull the band material tightly over it.

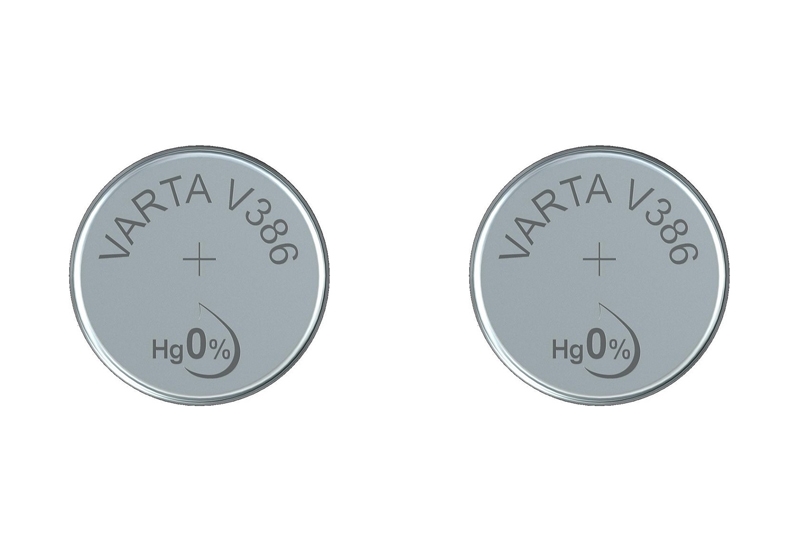

Product details:
Type: V386/SR43 W
Diameter: 11.60 mm
Height: 4.20 mm
Voltage: 1.55 V
Capacity: 115 mAh
System: Silver oxide
